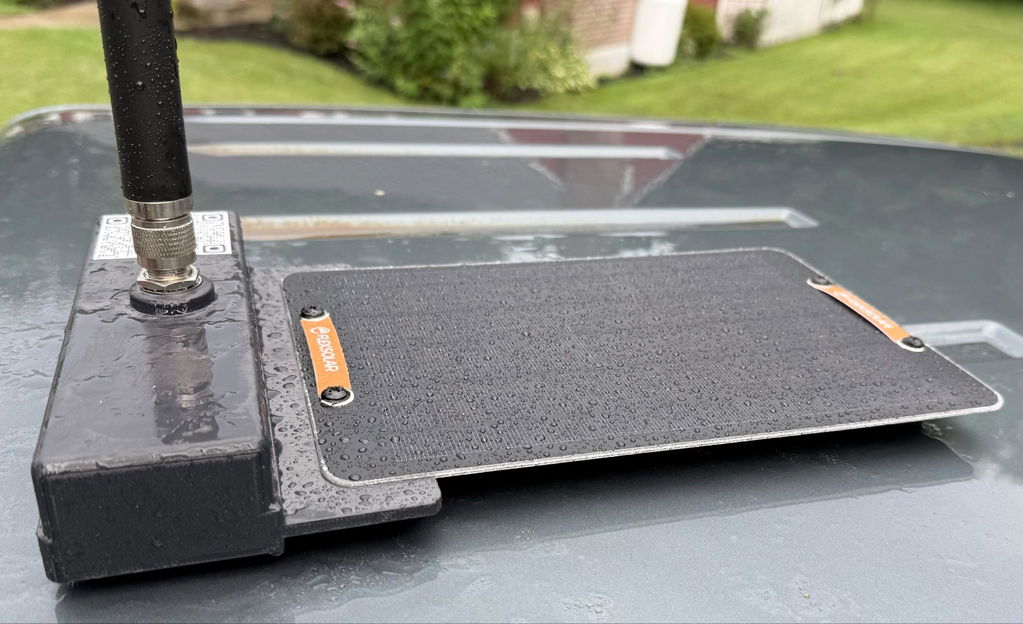

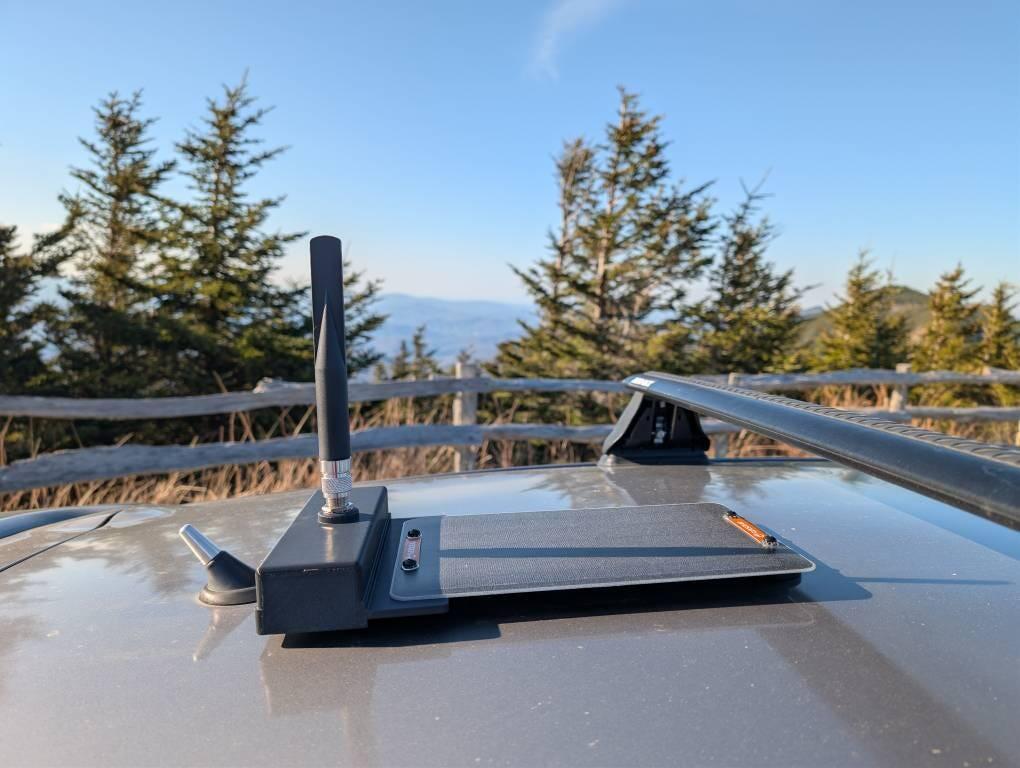

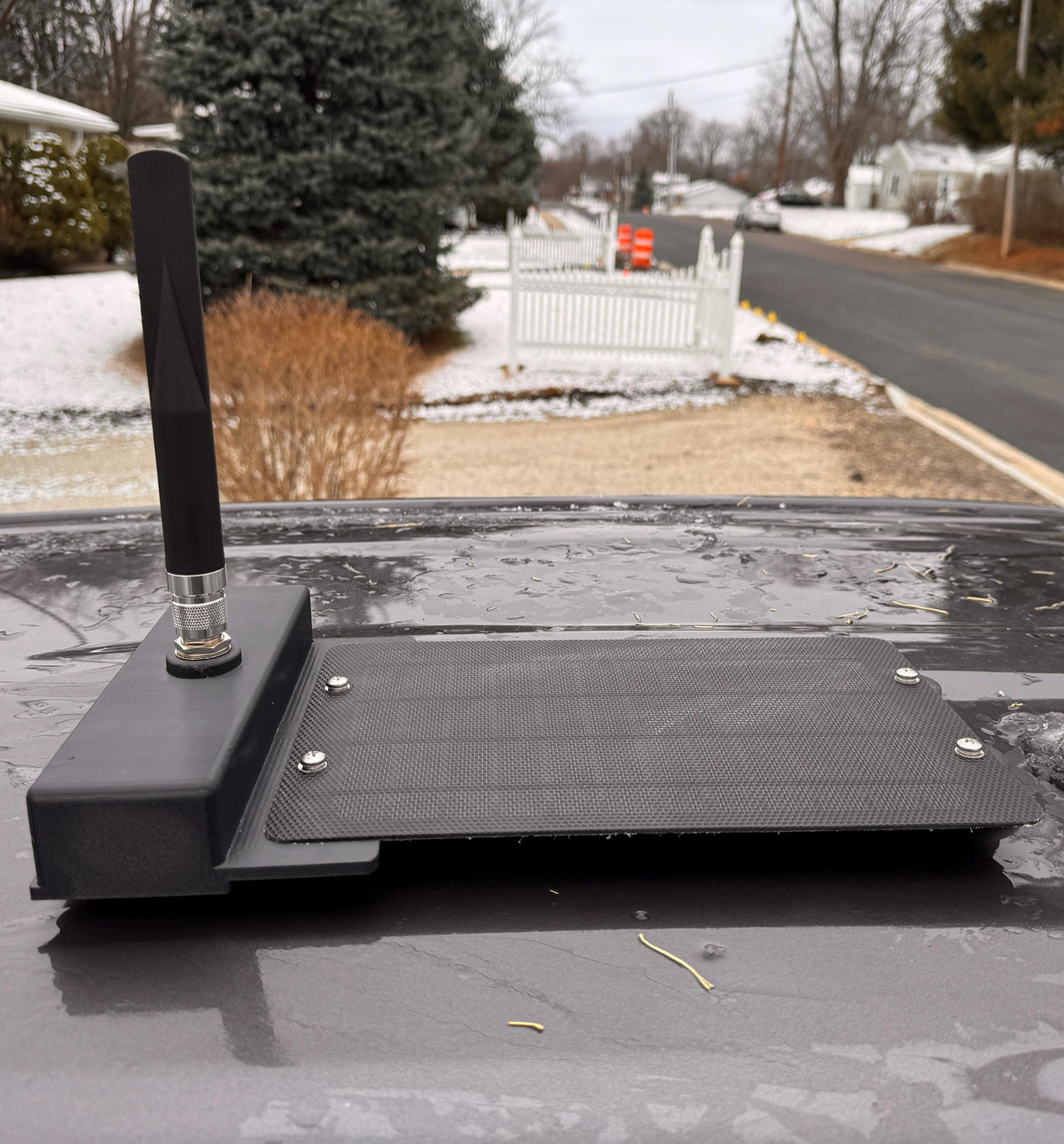

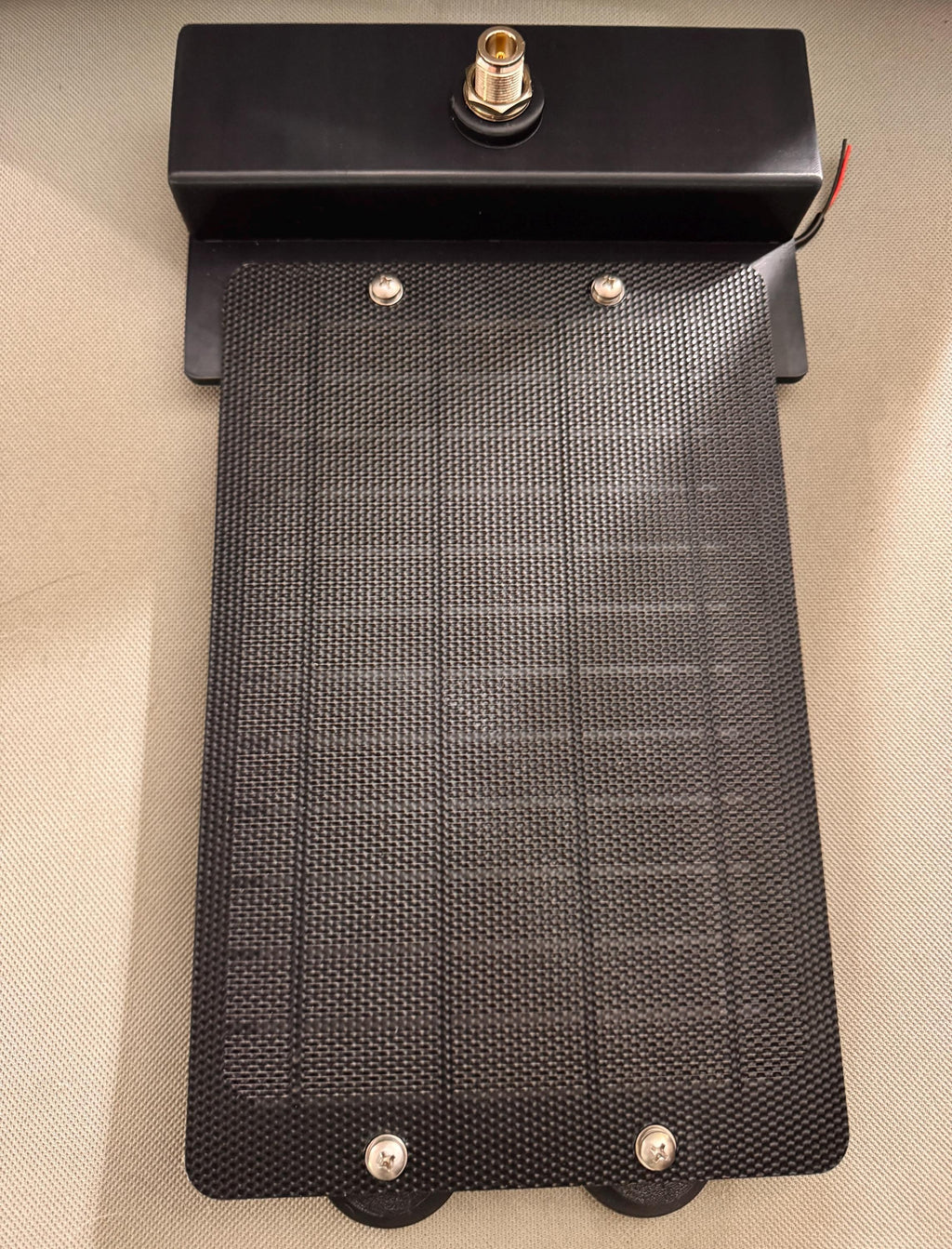

Build a reliable, off-grid Meshtastic solar node with this weather-resistant ASA housing kit. Designed around the RAKwireless WisBlock RAK4631, it also accepts other Meshtastic boards using the included universal project plate — a durable, field-ready enclosure for solar-powered mesh deployments on a mast, roof, vehicle or fence post.
Features
- Printed in ASA for superior UV, heat and weather resistance
- TPU gasket helps keep water out
- Taller housing gives extra room for batteries, wiring and board mounting

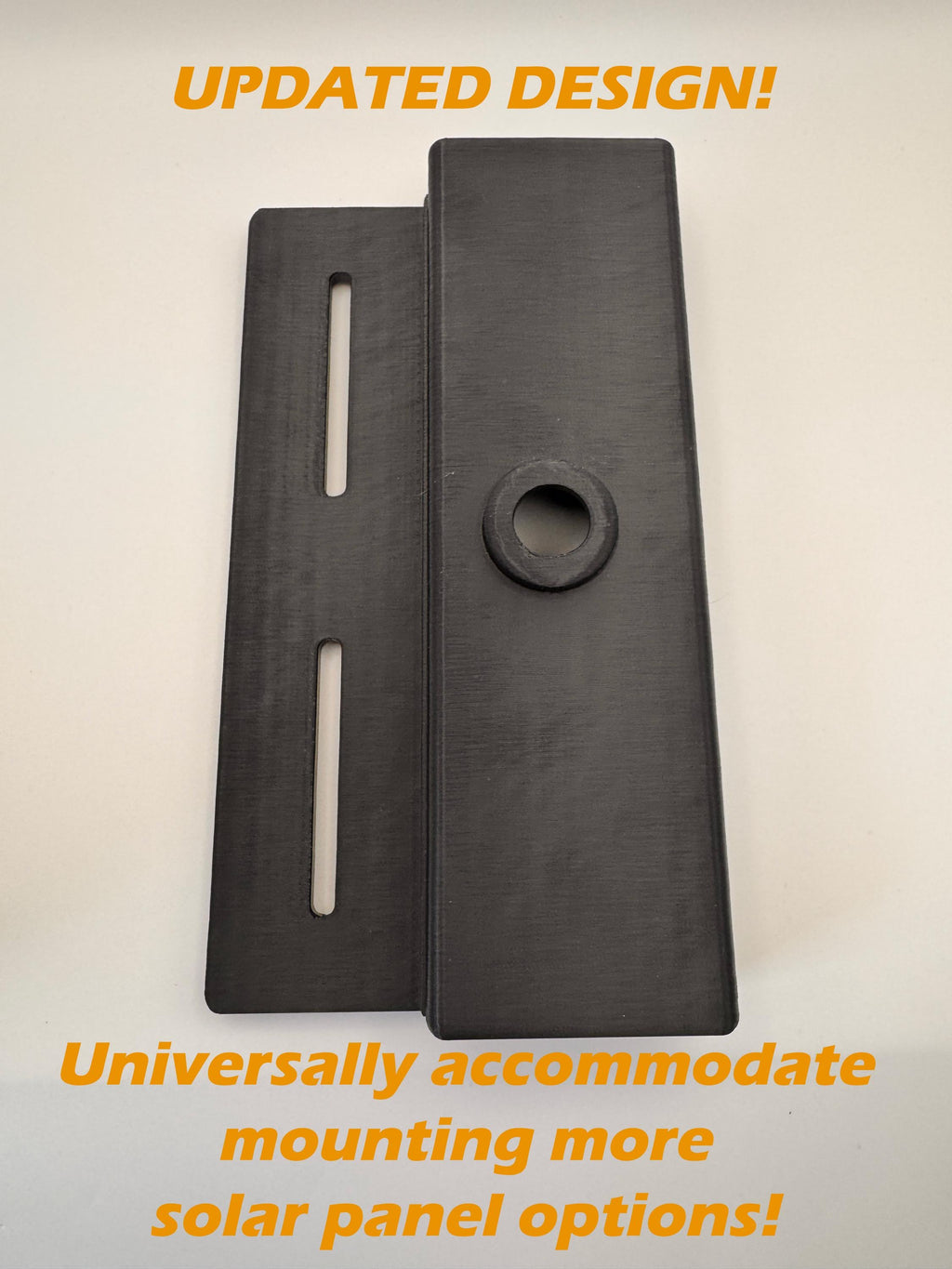

- Updated design fits a wider range of 5 V 6 W USB solar panels — more options when your favorite panel is sold out

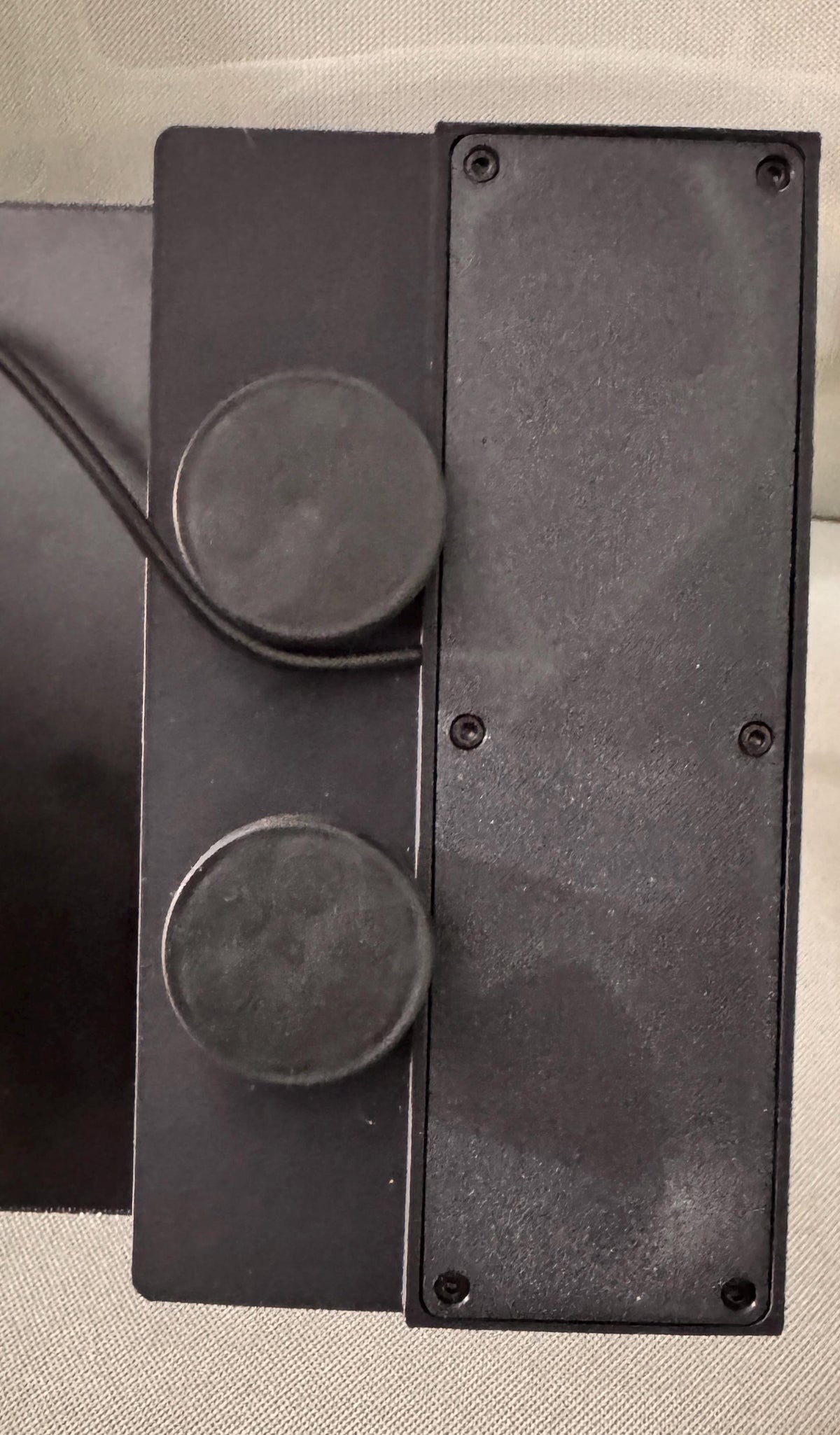

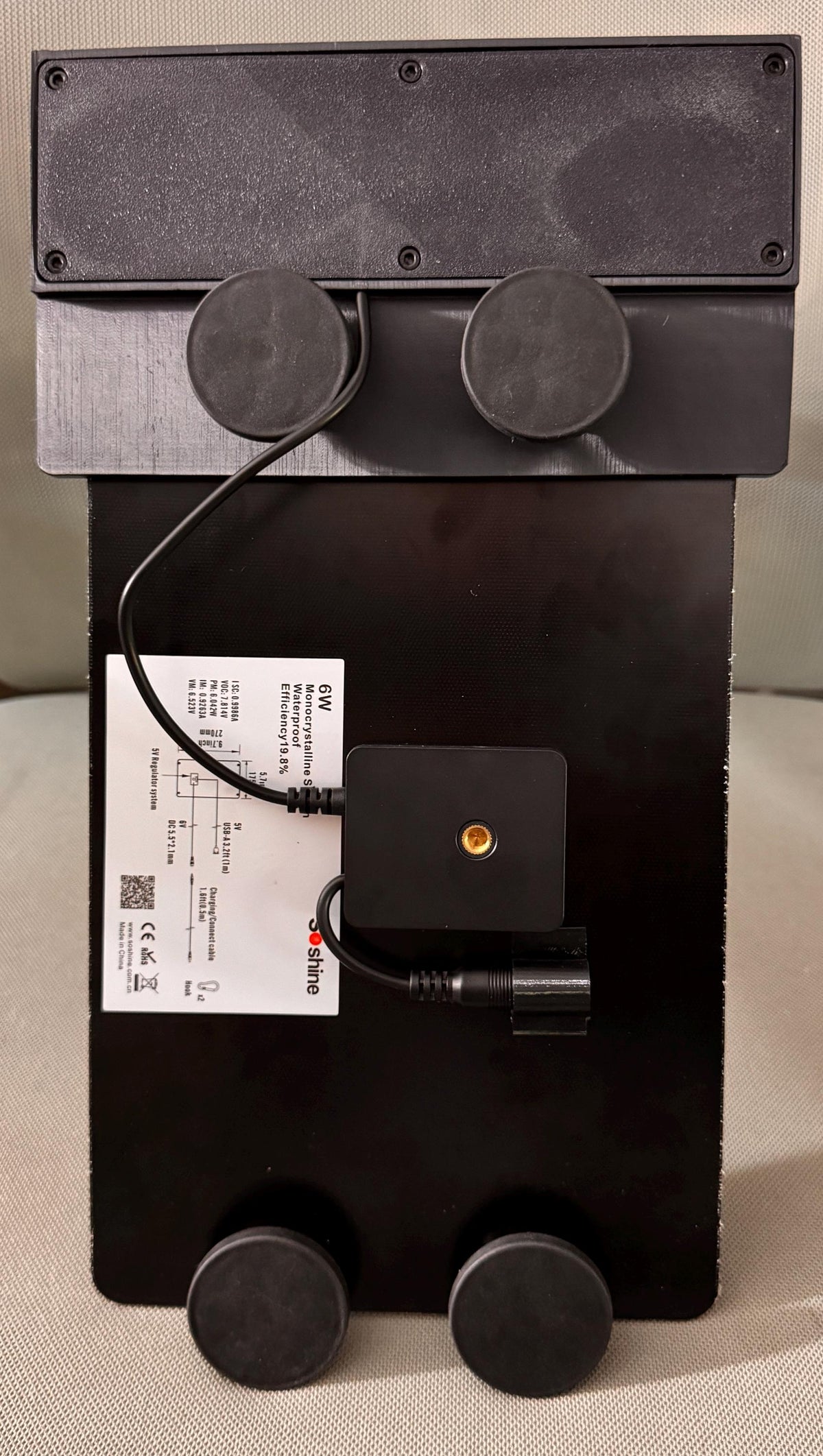

- Integrated standoffs position the solar panel and support magnet mounting
- TPU cover for the solar panel plug (glue to the back of the panel)
- Room to add a second solar panel
- Universal project plate snaps over the standoffs for alternate Meshtastic boards
Compatibility
-

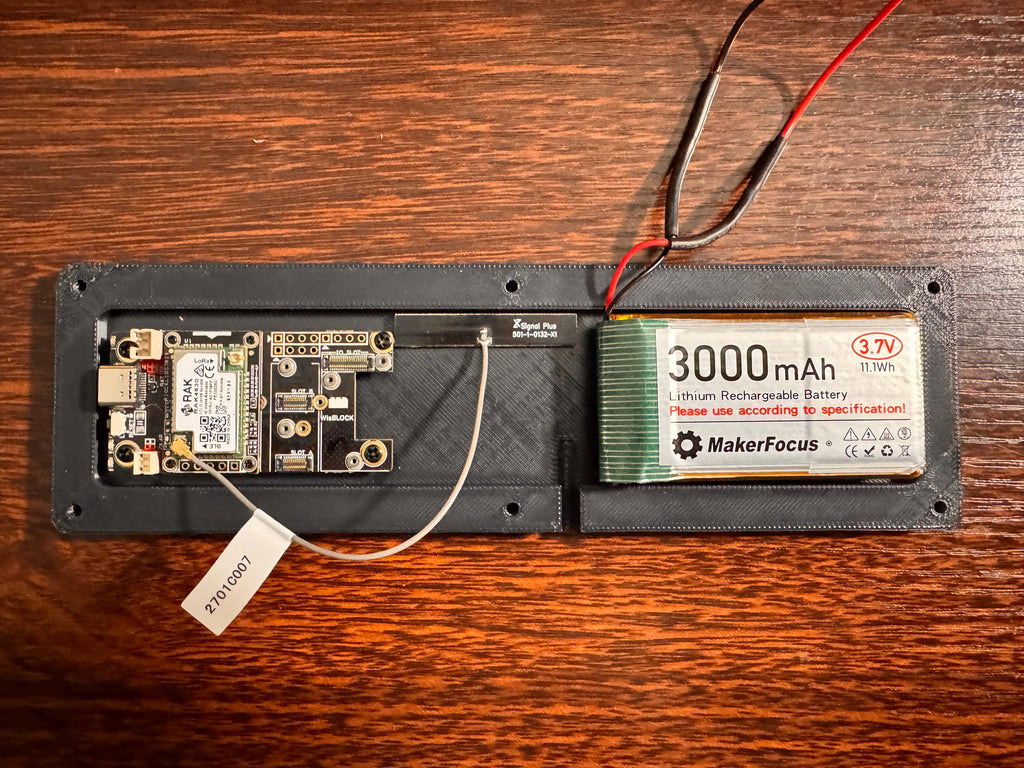

RAKwireless WisBlock RAK4631 on the RAK19007 base board (primary design target)
- Other Meshtastic boards using the universal project plate (screws supplied by you)
Designed Around These Common Parts
The housing was designed around readily available components (not included):
- RAKwireless WisBlock Meshtastic Starter Kit US915 (RAK19007 base + RAK4631 core)

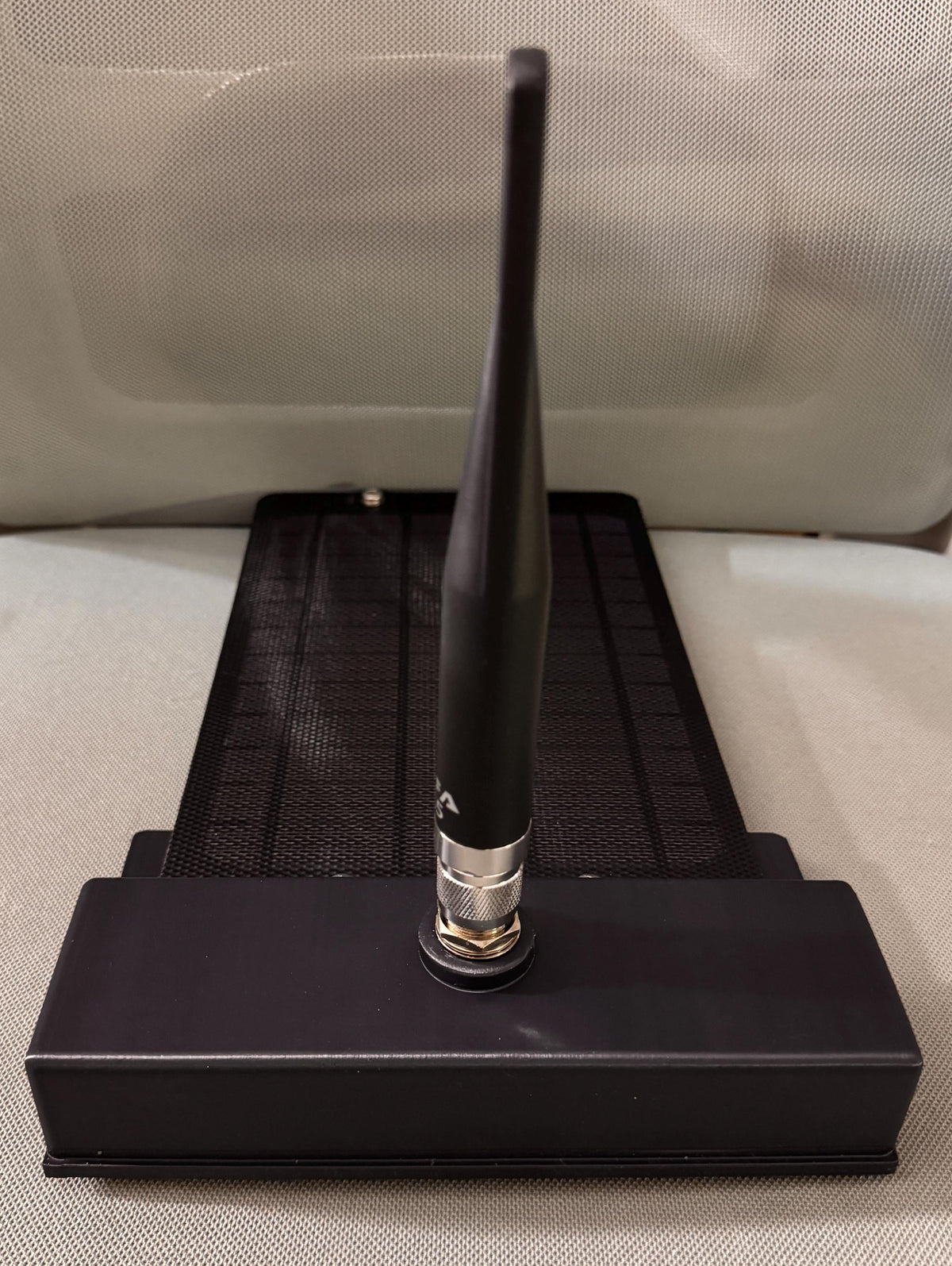

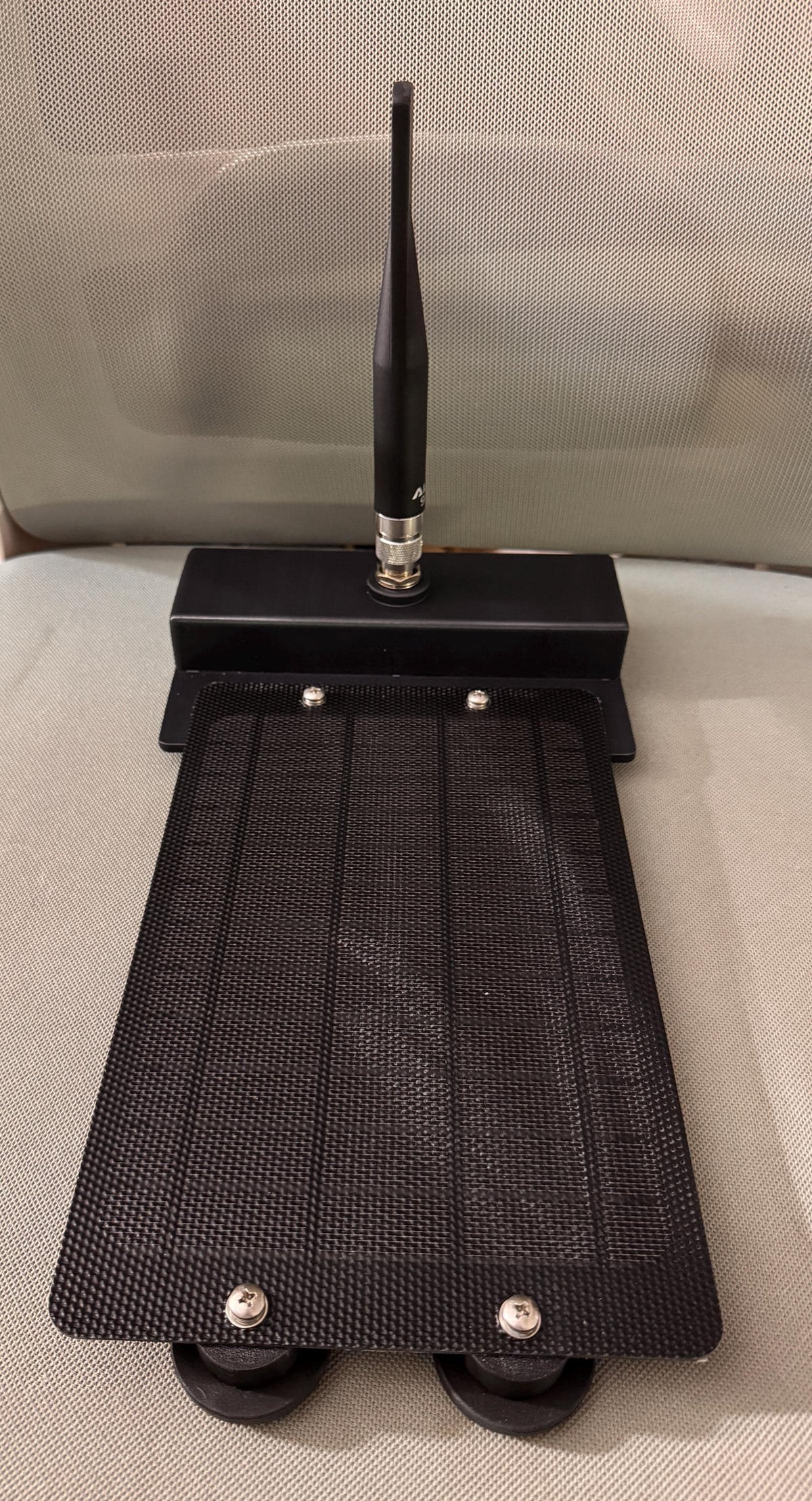

- ALFA Network AOA-915-5ACM 915 MHz outdoor antenna
- Soshine 5 V 6 W USB solar panel, or FlexSolar mini 5 V 6 W USB solar panels

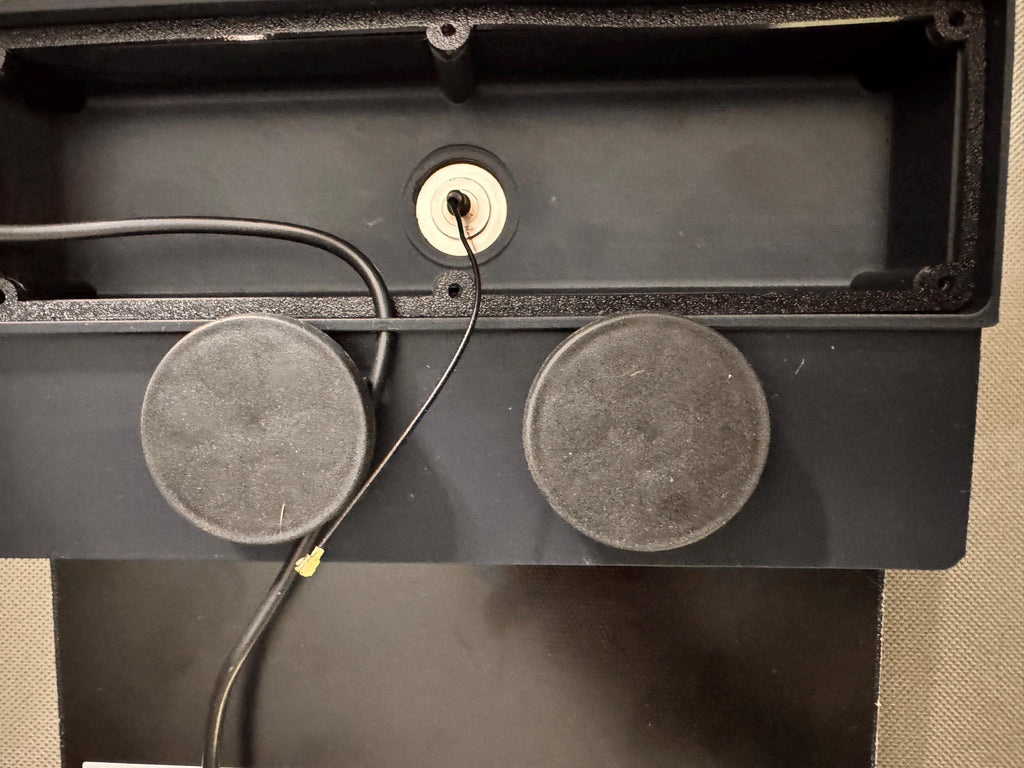

- DIYMAG rubber-coated mounting magnets
- U.FL to N-type low-loss coax pigtail
- MakerFocus 3.7 V 3000 mAh LiPo battery
Need help finding the exact parts? Contact us and we’ll send links.
Specifications
- Outer dimensions: 200 × 111 × 44.8 mm

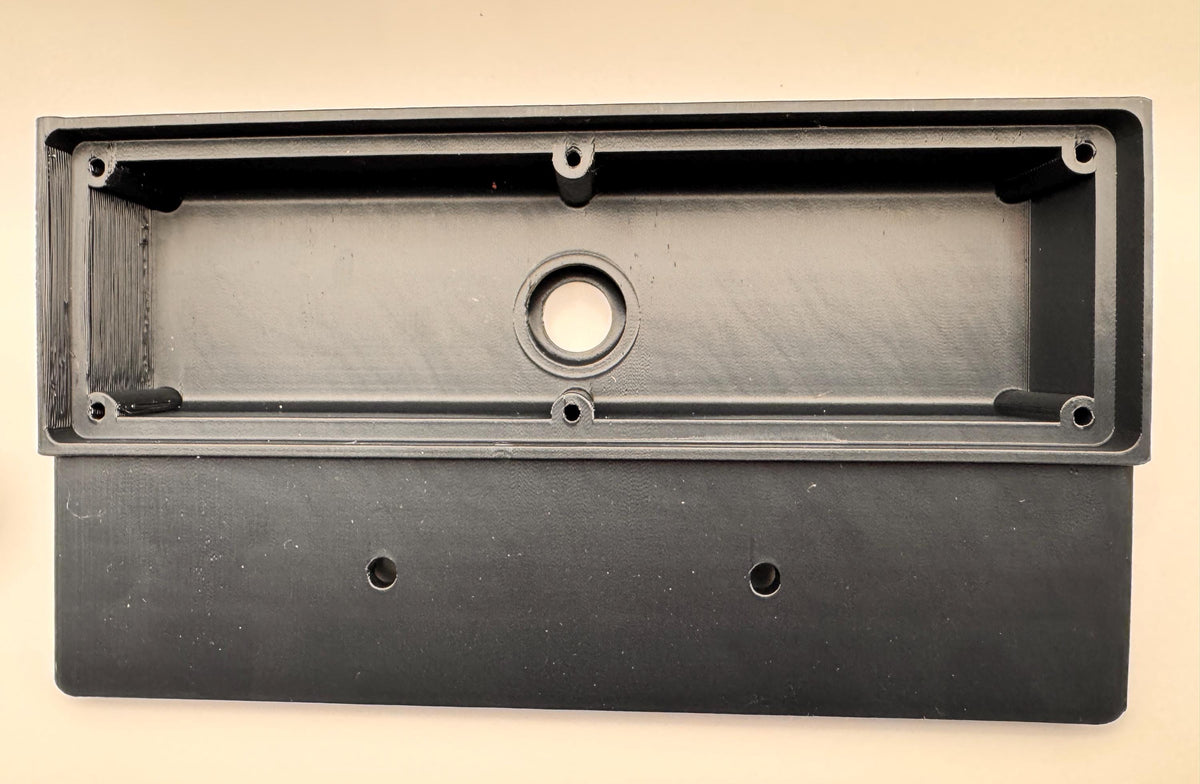

- Internal space (approx.): 188 × 50 × 25 mm

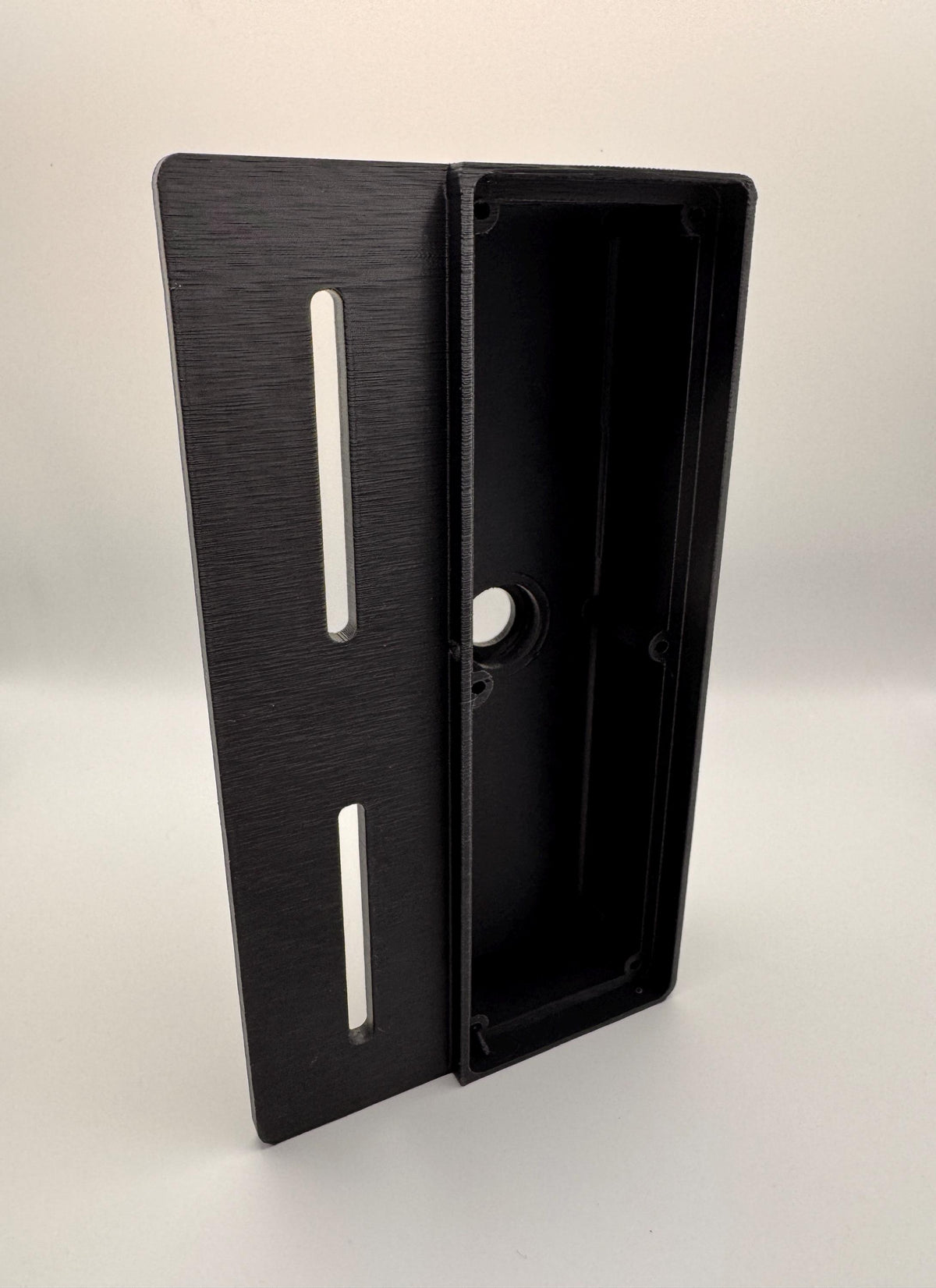

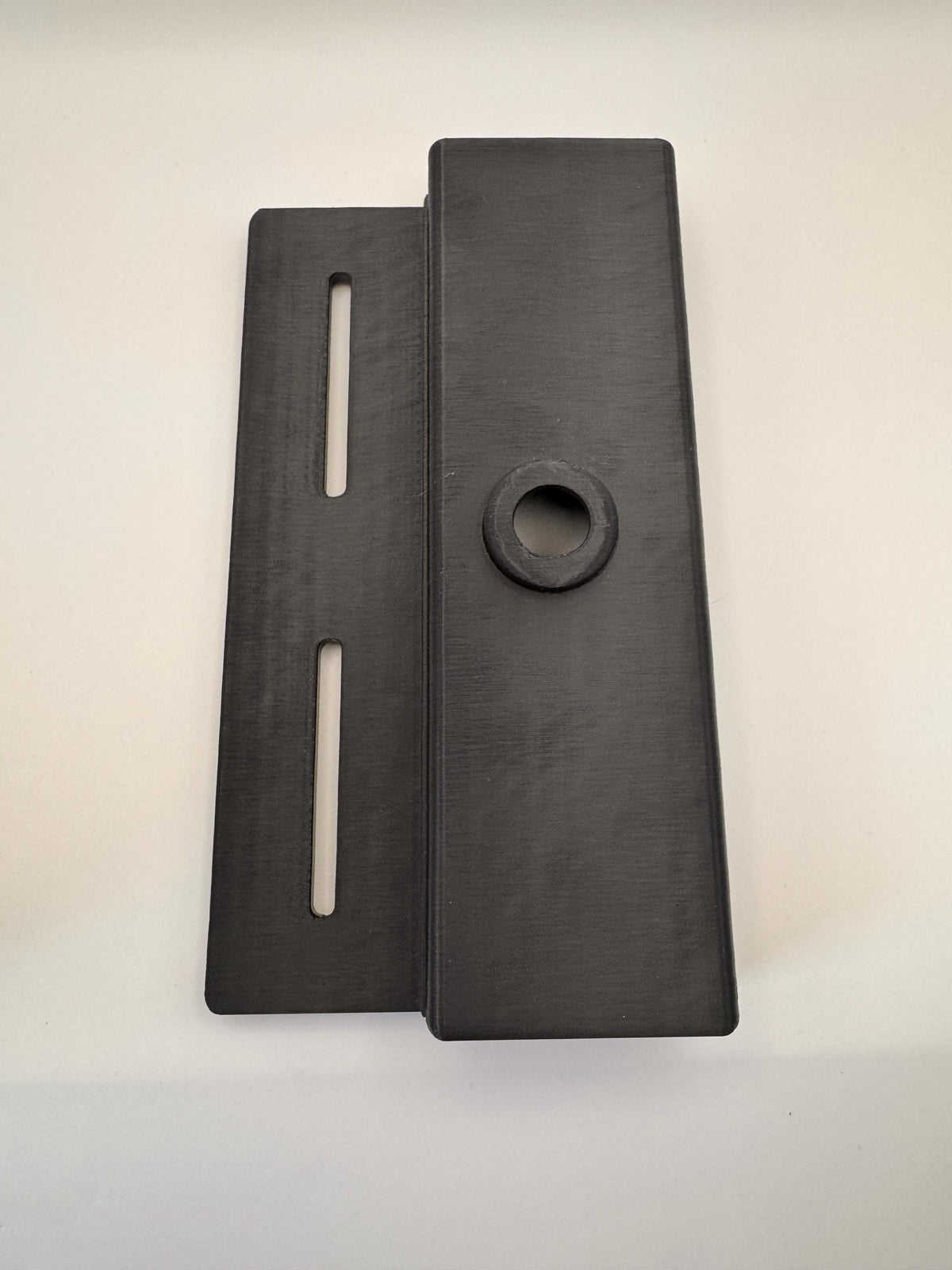

- Solar panel mounting holes: 71 mm center to center; mounting plate can be drilled for other spacing

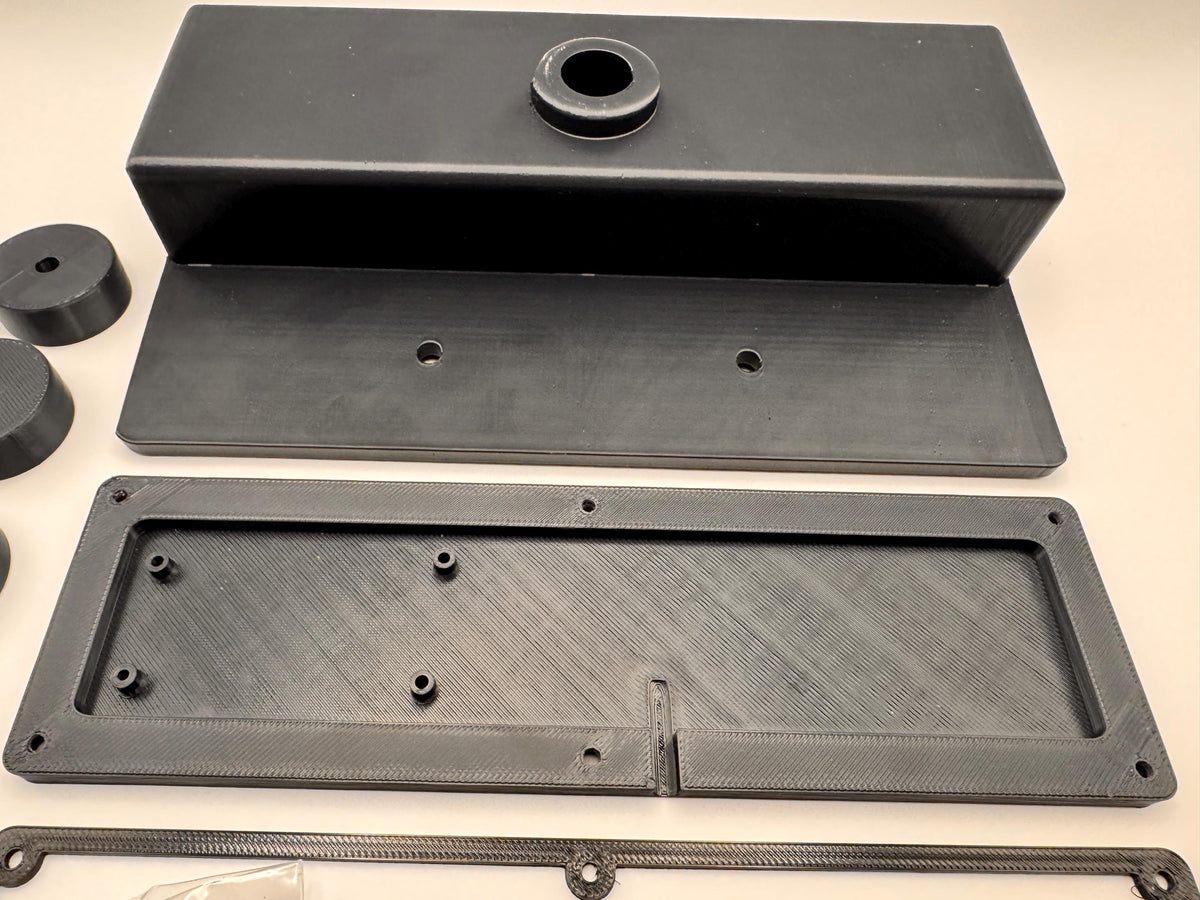

- Material: ASA housing, TPU gasket
- Color: Black
- Made to order: ships in 5–7 business days
What’s Included

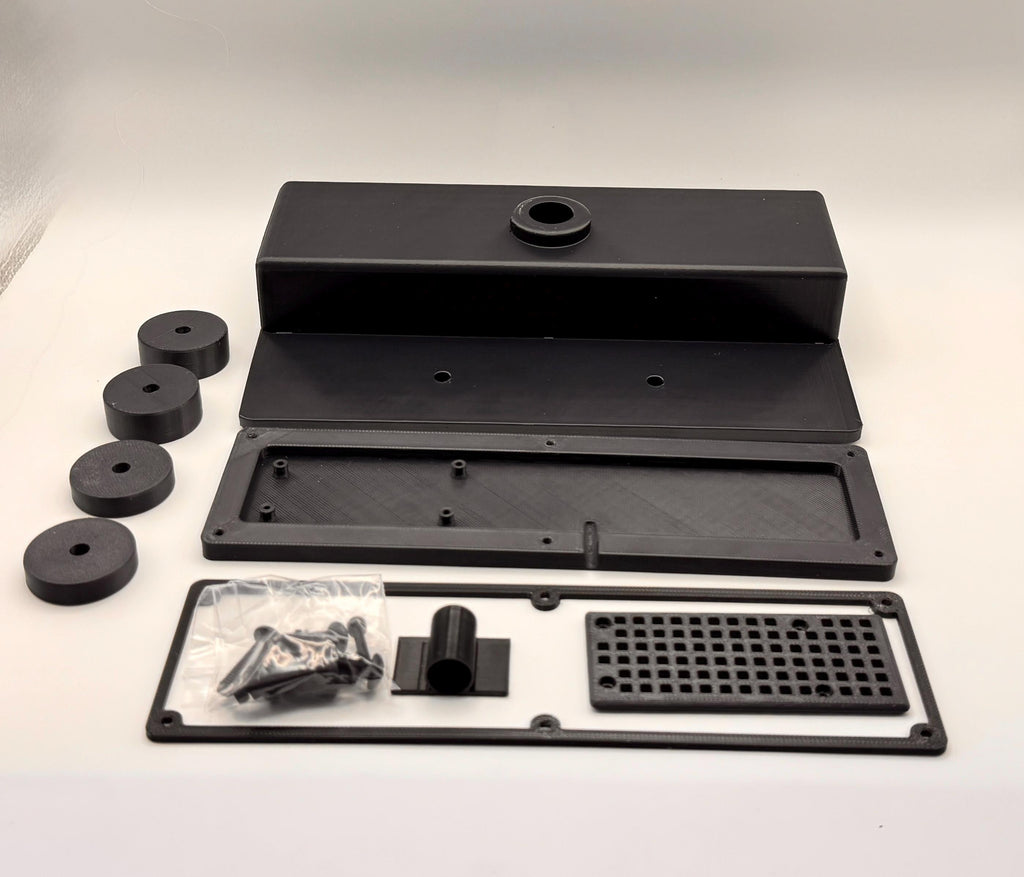

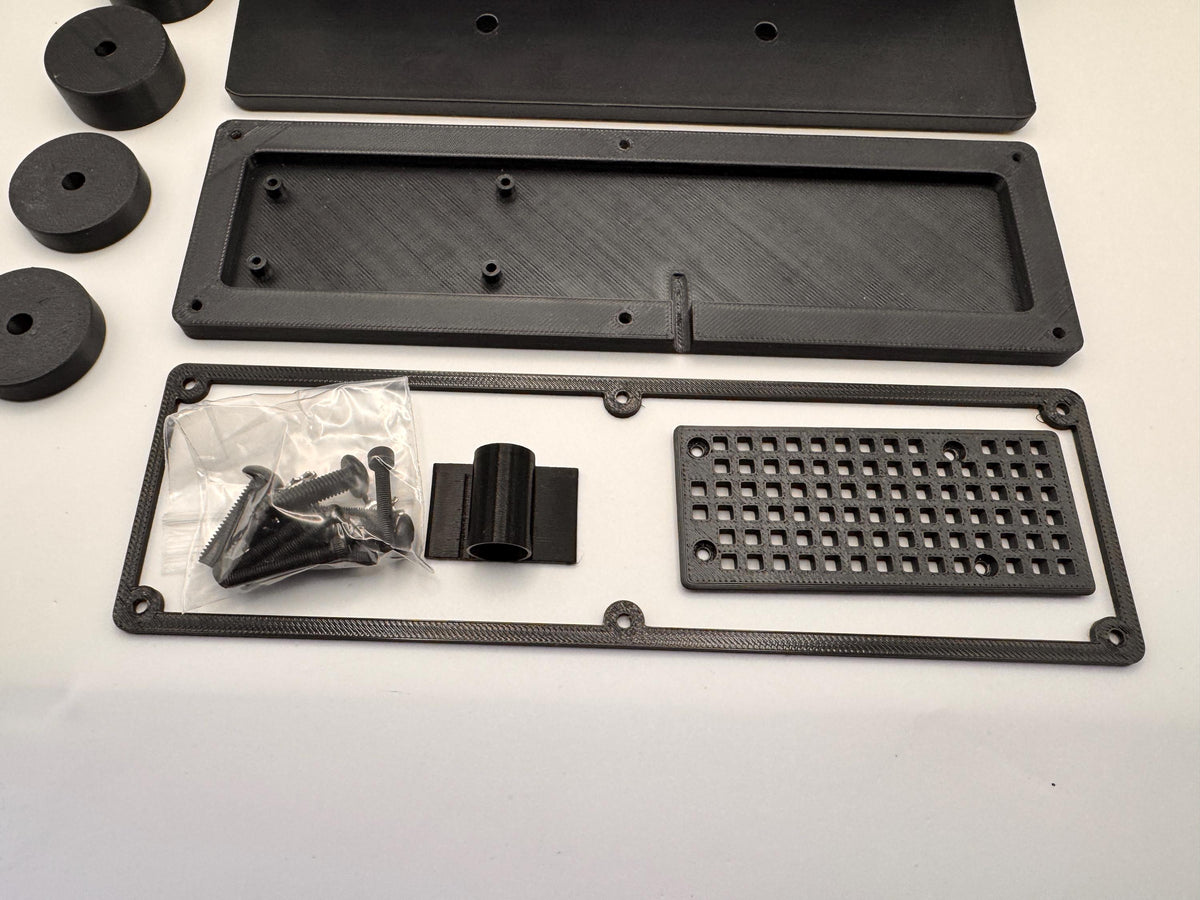

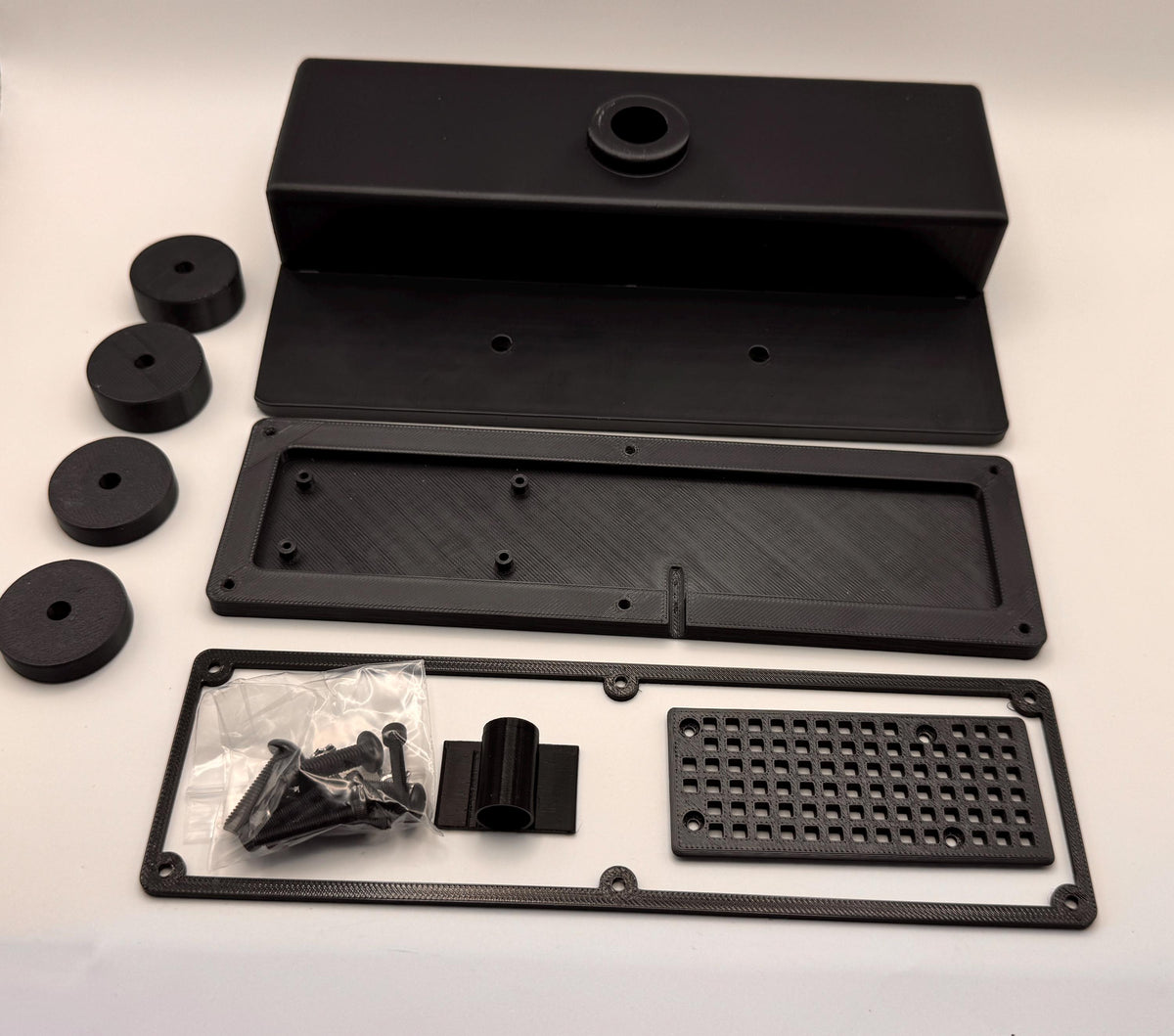

ASA housing, TPU gasket, TPU solar plug cover, universal project plate and housing screws. Electronics, solar panel, battery, antenna, magnets and project-plate screws are not included. Assembly required.
FAQ
Is it waterproof?
No — it is water resistant with the gasket. For permanent outdoor installs, seal it with marine-grade silicone. Waterproofing is the builder’s responsibility.
Can I use a board other than the RAK4631?
Yes, mount it on the included universal project plate (bring your own screws).
Why ASA instead of PLA or PETG?
ASA holds up much better to sun, heat and weather, which makes it the right choice for outdoor nodes.
Does it include magnets, a solar panel or a battery?
No. The housing supports magnet mounting and the listed parts, but those are supplied by you.
Made to Order in the USA
Every housing is 3D printed and inspected by 3DMcPrintface in Illinois. Made to order — typically ships in 5–7 business days.
Good to Know
- Electronics, batteries, antennas and other equipment shown in photos are for display only and are not included.
- Because these are 3D printed, minor layer lines may be visible, and filament shades can vary slightly from the photos.
- Personalized and custom-color items are made just for you and are final sale unless defective — if anything isn’t right, contact us and we’ll make it right.
- To reduce waste, packing slips aren’t included automatically. Need one? Just contact us after you order.
